Product Details
＋

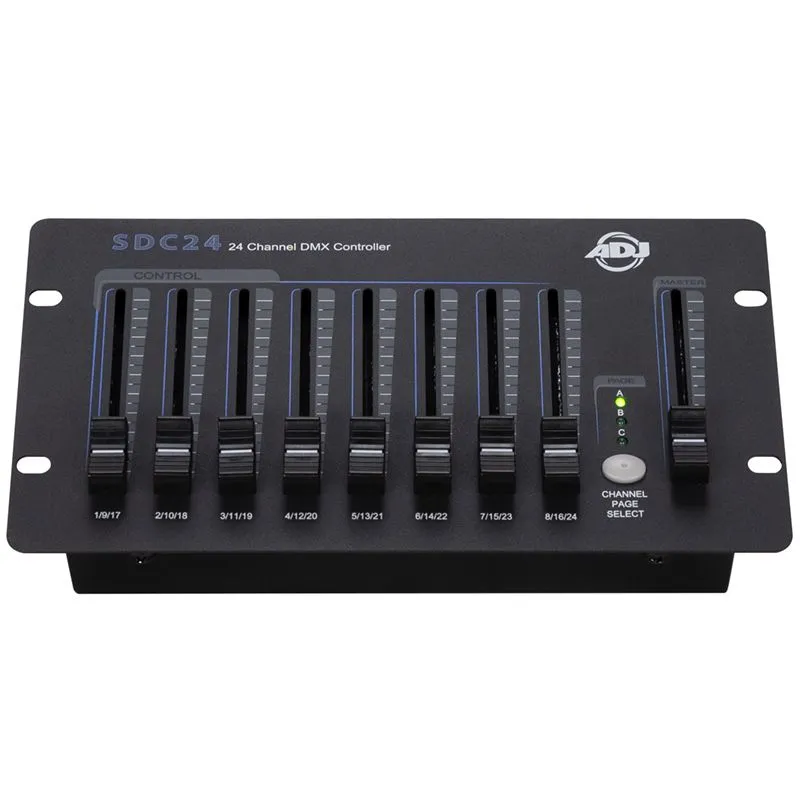

The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets, DIP switches to set a starting DMX channel, a master dimmer fader, an on/off switch and Channel Page button with Indicator LEDs.
This a great compact controller for product demos or manual control of LED or conventional fixtures. Its compact and easy to use design makes it a great control solution for small stages at live events, venues, churches, theaters, bars and lounges.
Features:
- 8 individual channel faders and 1 master fader
- 24 DMX channels
- Compact, portable design
- 3-Pin and 5-Pin XLR output
- Battery Type: PP3 9V (not included)

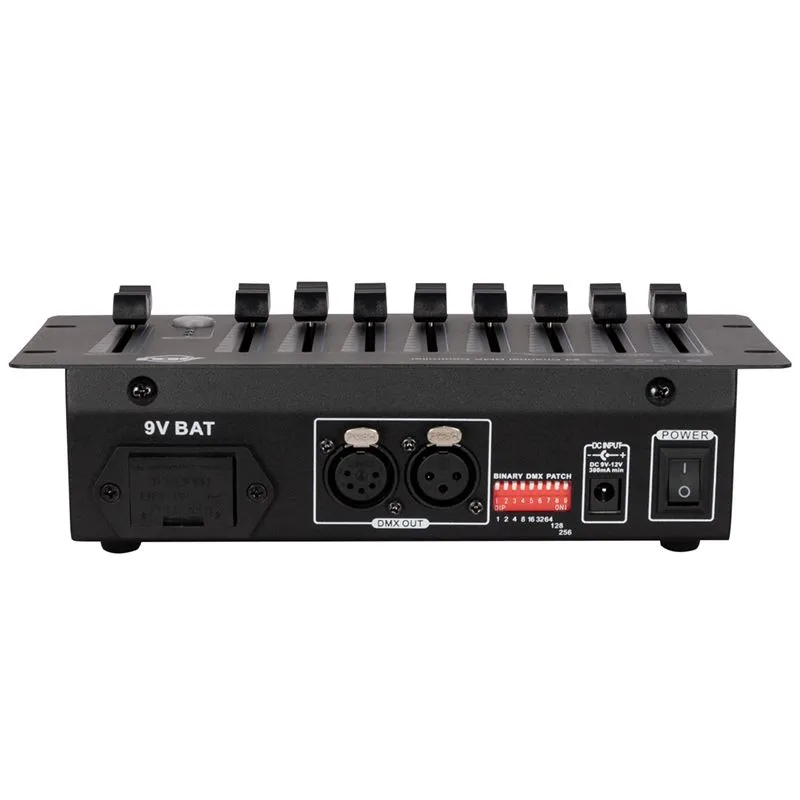

Control / Connection:
- DIP Switches To Set Starting DMX Channel
- 3pin & 5pin DMX Outputs
- On/Off Switch
- Channel Page button with Indicator LED's
- DC9V-12V Power Supply Input
- 9V Battery slot
Size / Weight:
- Length: 4.73” (120mm)
- Width: 9.06” (230mm)
- Height: 2.23” (56.66mm)
- Weight: 1.86 lbs. (0.84kg)
Electrical:
- DC9V-12V 300mA min or 9V Battery (Not Included)
- Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W
Approvals / Ratings:
- CE Approved
- cETLus (Control # 5014475)
- IP20
Included Accessories:
• 9V 1A Power Supply with plug adapters
Specifications subject to change without notice.
