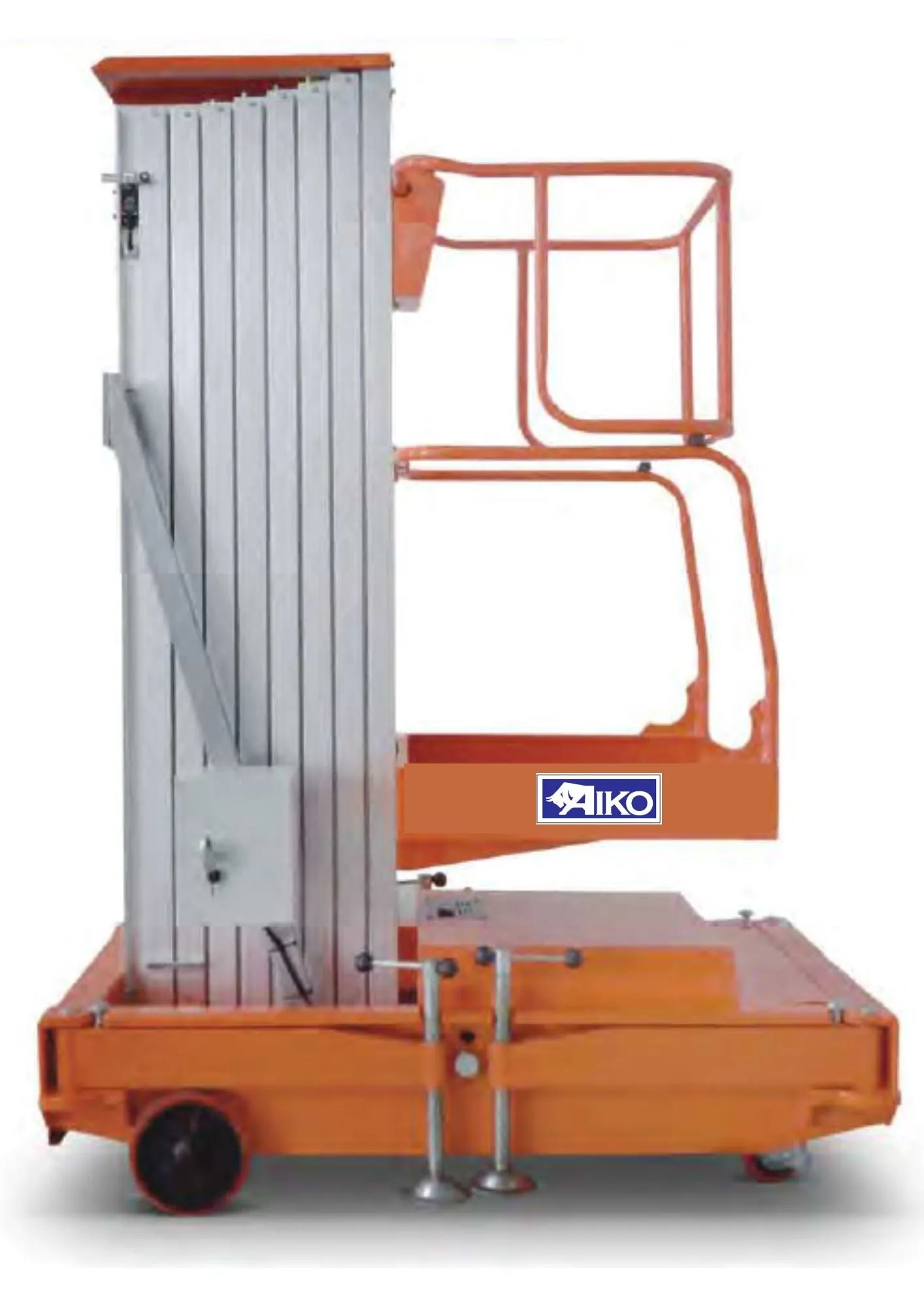

Aiko 8m Aluminum Lifting Platform  | Model : PT-GTWY801

Features :

• Leveling Outrigger Device
• Two controllers Operation
• Emergency Stop Button
• Emergency Lowering System
• Overloading Limited
• Battery Charge Indicator
• Limit Switch

Specifications :

• Model : GTWY801
• Capacity : 125 kg

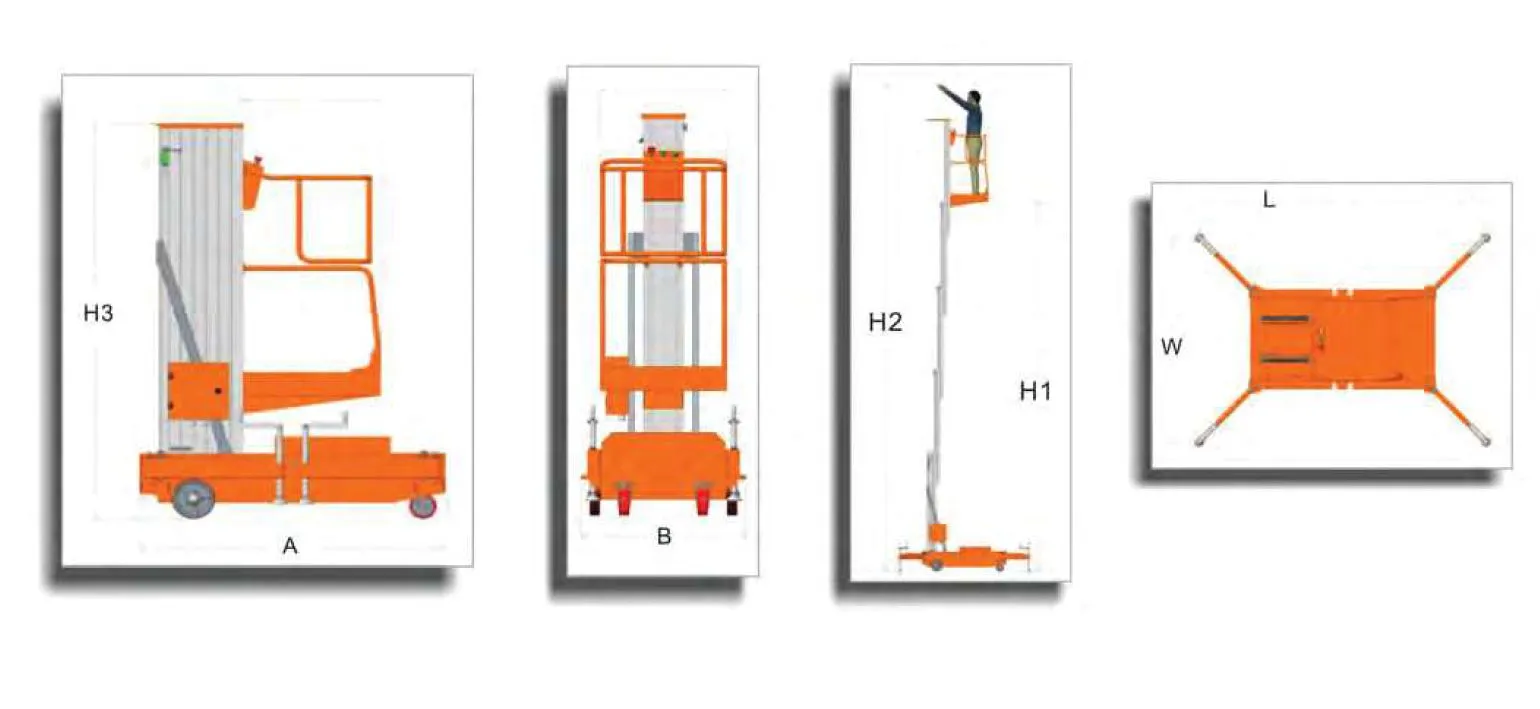

• Max Platform Height H1 : 8 m
• Max Working Height H2 : 10 m
• Platform Size : 0.63 x 0.64 m
• Overall Length A : 1.42 m
• Overall Width B : 0.82 m
• Overall Height H3 : 2 m
• Outrigger Footprint : 1.90 x 1.75 (L/W)
• Ground Clearance : 0.06 m
• WheelBase : 1.11
• Front Wheels Size : 5 inch
• Real Wheel : 8 inch
• Battery : 2-12V/65ah
• Integrated Chargers : 12V / 15A
• Lifting Motor (AC) : 230V / 0.75 KW
• Lifting Motor (DC) : 12V / 0.75KW
• Lifting Time : 44 s
• Lowering Time : 38 s
• Self Weight :
• 450 kg (AC)
• 485 kg (DC)
