Product Details
＋

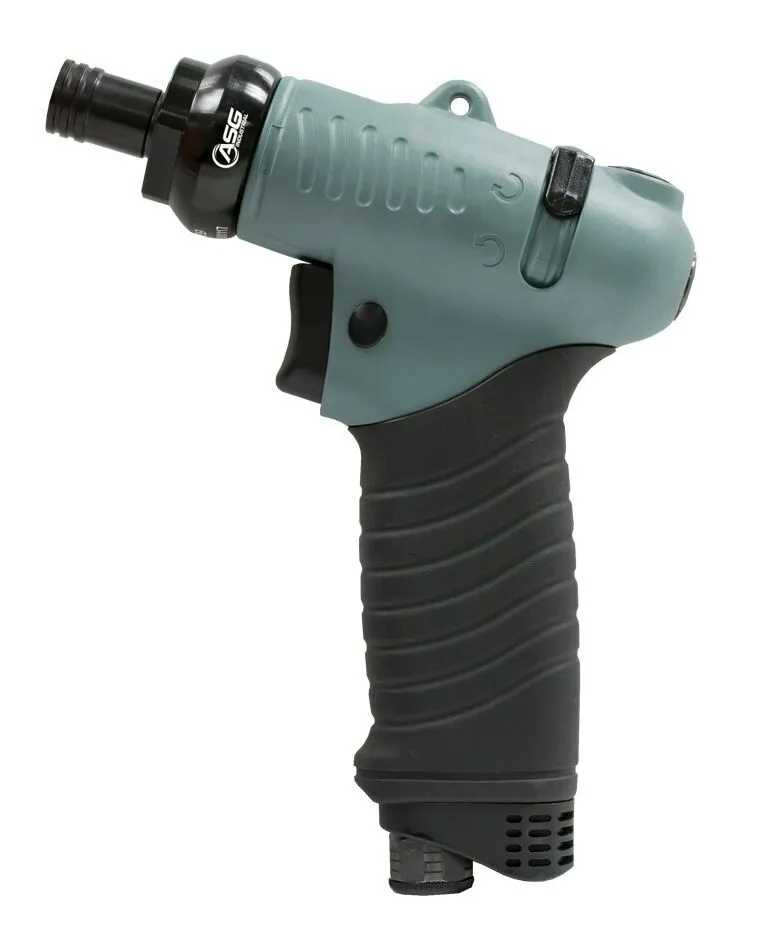

ASG H Series direct drive pneumatic screwdrivers offer affordable productivity. H Series tools feature a unique ergonomic thermoplastic design to provide comfort and gripping power, and are reversible. Torque output is determined by the force applied by the user.
- Light weight, ergonomic composite housing
- Image may vary slightly from actual product
Specifications
- Model No.: HDP58
- Operation: Trigger Start
- Body Style: Pistol Grip
- Clutch Type: Direct Drive
- Torque: 2.2 to 10.4 N·m (19.5 to 92.0 lbf·in)
- Free Speed: 750 rpm
- Drive Type: 1/4" Hex
- Air Inlet: 1/4" NPT
- Min. Hose I.D.: 5/16" (8 mm)
- Air Consumption: 19.4 cfm (9.17 I/sec)
- Operating Pressure: 90 PSI (6.2 bar)
- Noise Level ±2dBA: 76
- Length: 6.3" (159 mm)
- Weight: 1.6 lb. (0.73 kg)
- Height: 6.1" (154 mm)
- Warranty: 1 Year
