Product Details
＋
Key Features
- AC 100-264VAC, 47-66Hz
- 7x 15W 6-in-1 LEDs
- 400Hz LED Driver
- PowerCon Compatible
- 25° Beam Angle
- DMX Channels: 3, 6, 8, 10, 11
- Standalone, Master/Slave
- Sound Active, Color Preset
- 3-Pin In/Out

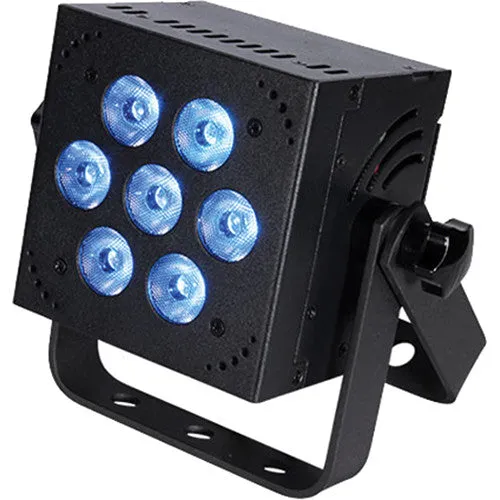

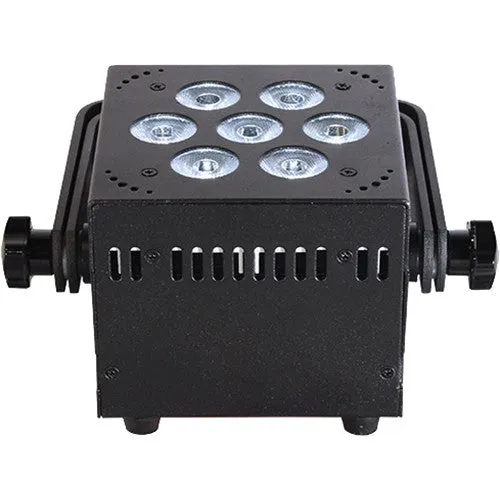

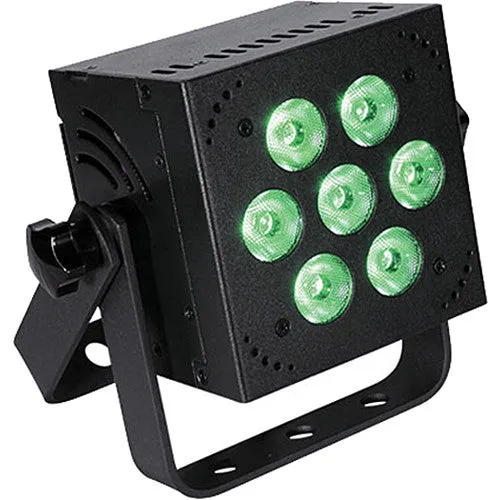

The Hotbox EXA RGBAW UV LED Light from Blizzard Lighting offers color mixing, advanced electronics, and high output in a 4 x 5 x 5" package. It employs 6-in-1 395-400nm UV LEDs, 3, 6, 8, 10 or 11 user selectable DMX channel modes, and an aluminum casing supported by dual hanging brackets and secure grip locking knobs.
The Hotbox EXA boasts DMX control of built-in programs, flicker-free 32-bit dimming and HSV color mixing. Other operating modes include the Master/Slave, Sound Active mode, and Color Preset.
Attributes
Blizzard HotBox EXA Specs
Light
| Light Type | PAR |
| Light Source | 7 x Color/UV LED - 15 W |
| Light Source Life Expectancy | 100,000 Hours |
| Colors | Red Green Blue Amber White |
| UV Wavelength | 395 to 400 nm |
| Photometrics | 1045.1 fc / 11,250 Lux at 3.3' / 1 m (Full On) |
| Beam Angle | 26° |
| Field Angle | 30° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | None |
| Dimming | 32-Bit Electronic, 0 to 100% |
Performance
| Operating Modes | Color Change, Master/Slave, Sound-Active, Standalone |
| Macros / Programs | Auto-Program Chase Macro Color Macro |
| Effects | Strobe (Variable Speed) |
| Gobos | None |
Control
| Control Protocols | DMX512 |
| DMX Channel Modes | 5 Mode(s): 3 / 6 / 8 / 10 / 11-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | wiCICLE (with Optional Equipment) |
Connectivity

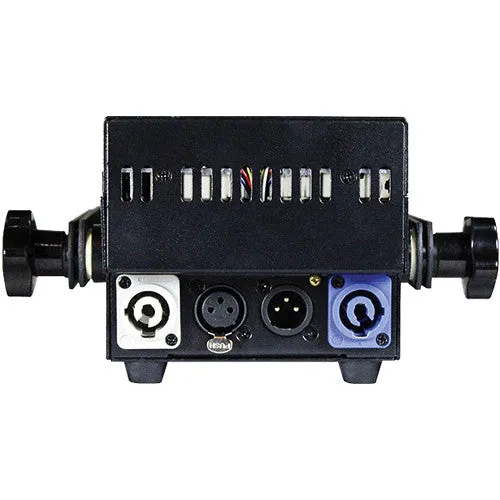

| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 2 x XLR 3-Pin DMX Output |
Power
| AC Input Power | 100 to VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON Output: 1 x powerCON |
| Fuse | 2 A |
| Power / Current Consumption | 53 W |
Environmental
| IP Rating | None |
| Operating Temperature | 104°F / 40°C |
Physical

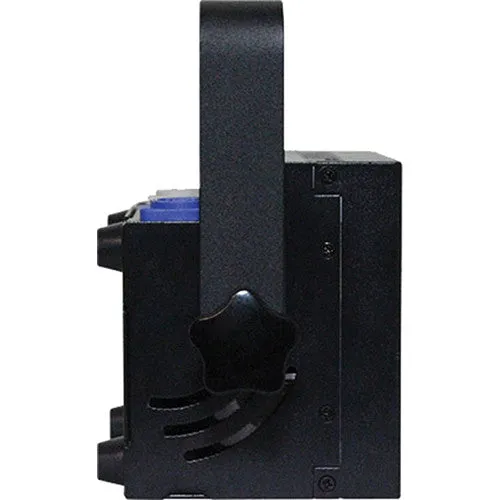

| Mounting | Dual/Scissor Yoke |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan |
| Dimensions | 5 x 5 x 4" / 127 x 127 x 101.6 mm |
| Weight | 3.5 lb / 1.6 kg |
Packaging Info
| Package Weight | 5.6 lb |
| Box Dimensions (LxWxH) | 9.9 x 9.1 x 6.3" |
