Product Details
＋
Key Features
- AC 100-250VAC, 40-60Hz
- 7x 15W 5-in-1 LEDs
- 400Hz LED Driver
- PowerCon Compatible
- 26° Beam Angle
- DMX Channels: 4, 5, 9, 10
- Standalone, Master/Slave
- Sound Active, Color Preset
- 3-Pin In/Out

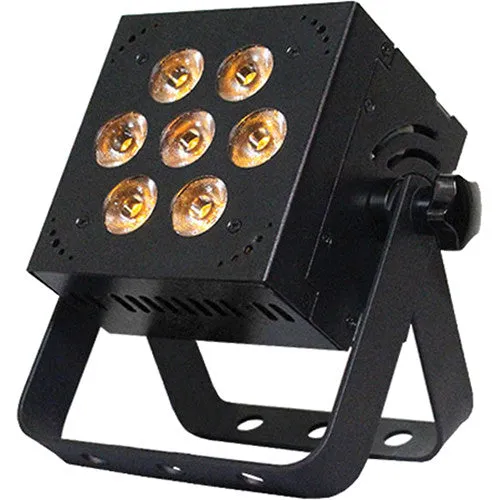

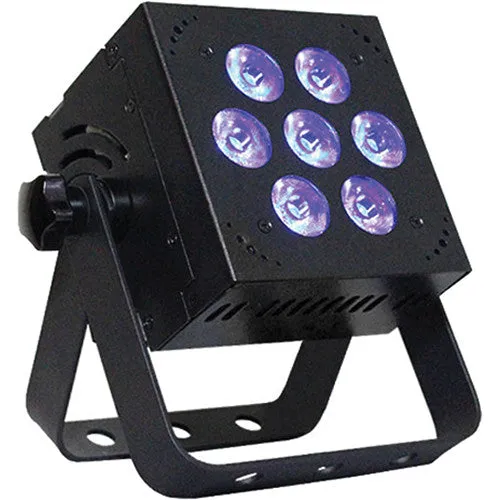

The Hotbox5 RGBAW LED Light from Blizzard Lighting offers color mixing, advanced electronics, and high output in a 4 x 5 x 5" package. It employs 5-in-1 LEDs, 4, 5, 9, or 10 user selectable DMX channel modes, full compatibility with 4-channel controllers and an aluminum casing supported by dual hanging brackets and secure grip locking knobs.
The Hotbox5 boasts DMX control of RGBAW color mixing, 31 built-in programs, flicker-free 32-bit dimming with 5 user-selectable dimming curves, and HSV color mixing ability in 4-channel mode. A 4-button LED control panel also offers local control of the fixture's Master/Slave settings, Sound Active mode, built-in programs, Auto Mode, custom color mixing, and user adjustable fade/strobe effects.
Attributes
Luminous Intensity
lux @ 6.5' (2.0 m)
Red: 800
Green: 780
Blue: 850
Amber: 410
White: 1,010
All: 3,260
Red: 800
Green: 780
Blue: 850
Amber: 410
White: 1,010
All: 3,260
Blizzard HotBox5 RGBAW Specs
Light
| Light Type | PAR |
| Light Source | 7 x Color LED - 15 W |
| Light Source Life Expectancy | 100,000 Hours |
| Colors | Red Green Blue Amber White |
| Pixel Configuration | None |
| Photometrics | 1067.4 fc / 11,490 Lux at 3.3' / 1 m 302.9 fc / 3260 Lux at 6.6' / 2 m |
| Beam Angle | 25° |
| Field Angle | 30° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Dimming | Electronic |
Performance
| Operating Modes | DMX, Master/Slave, Sound-Active |
| Macros / Programs | None |
| Effects | Strobe (Variable Speed) |
| Gobos | None |
Control
| Control Protocols | DMX512 |
| DMX Channel Modes | 4 Mode(s): 4 / 5 / 9 / 10-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | wiCICLE |
Connectivity

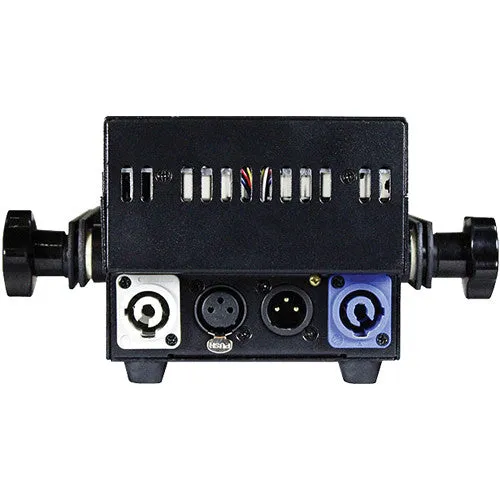

| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
Power
| AC Input Power | 100 to 250 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON Output: 1 x powerCON |
| Fuse | 2 A 250 V |
| Power / Current Consumption | 58 W / 0.83 A |
Environmental
| IP Rating | None |
Physical
| Mounting | Dual/Scissor Yoke |
| Exterior Color | Black |
| Max Housing Temperature | 104°F / 40°C |
| Cooling | Fan (Variable Speed) |
| Dimensions | 5 x 5 x 4" / 12.7 x 12.7 x 10.2 cm |
| Weight | 6 lb / 2.7 kg |
Packaging Info
| Package Weight | 5.55 lb |
| Box Dimensions (LxWxH) | 9.9 x 9.2 x 6.1" |
