DRIVER,TRANSDUCER,10.0-50.0KGF-CM,ESD,ATX-50
The drivers feature an ergonomic grip design that is lightweight and ESD safe for electronics assembly. The drivers also feature an integrated, intensity-adjustable white LED work light, user-defined status indicator light. They have an easy-to-operate rotation direction selector, and a user-programmable trigger system that allows you to define the trigger type as push, or both also define the start and stop sensitivity.
INTELLIGENT TORQUE
DRIVERS

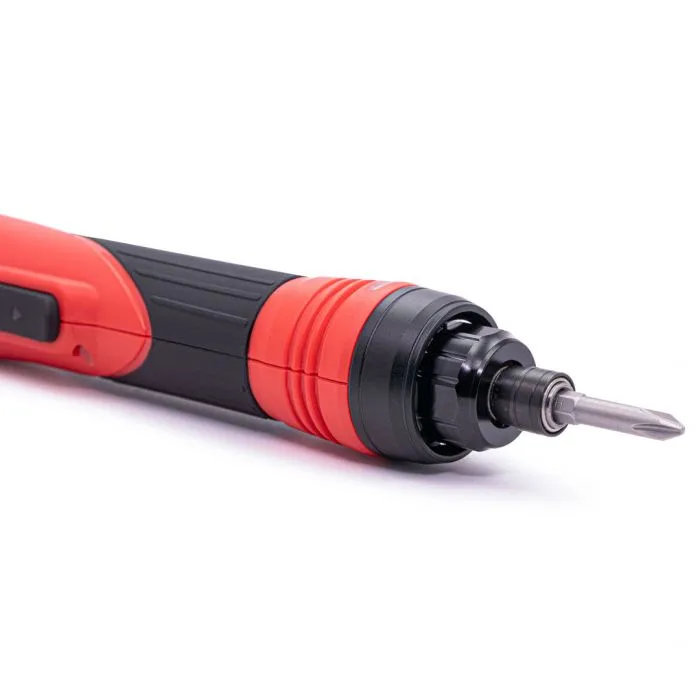

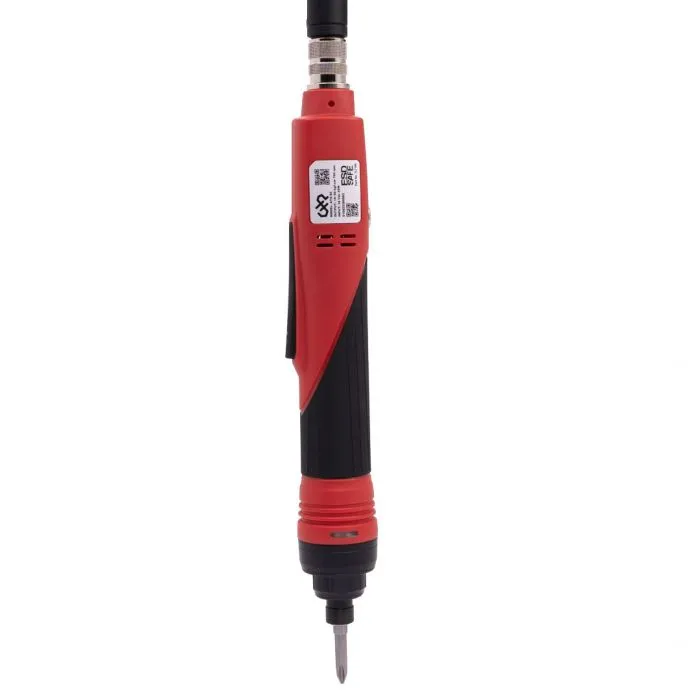

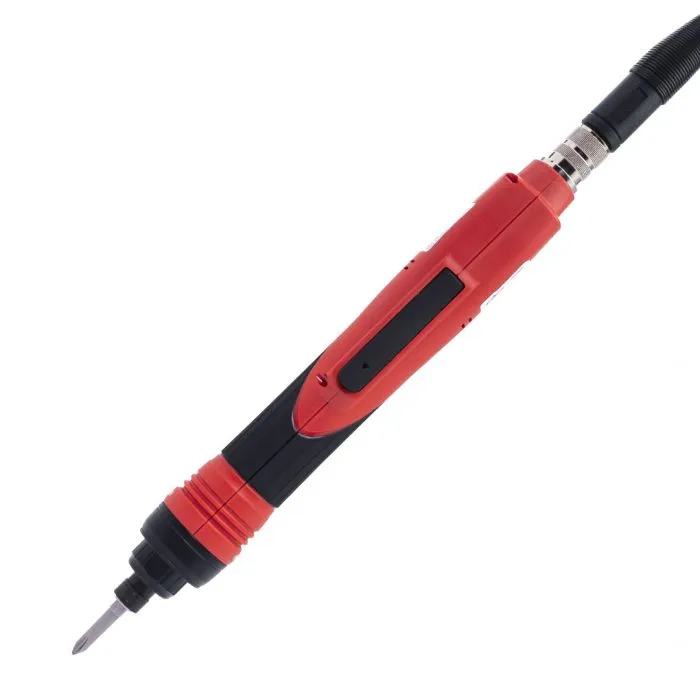

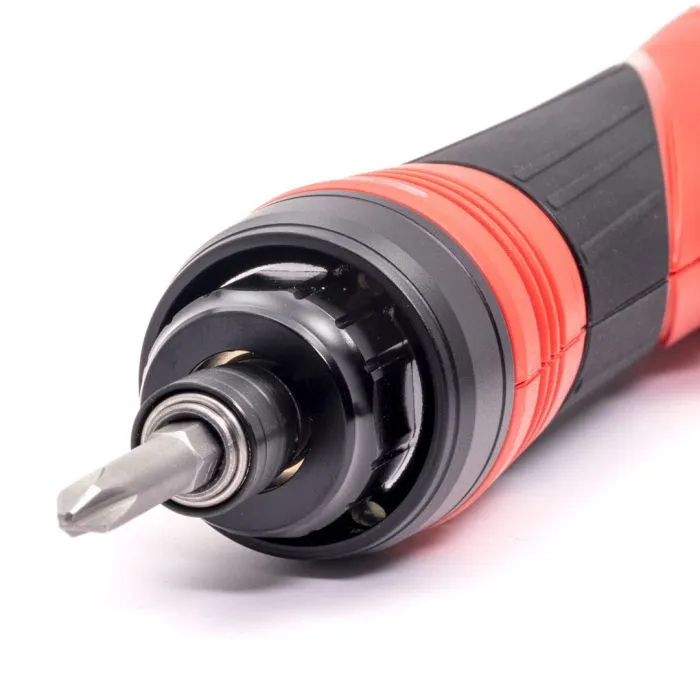

The CHP ATX-12, 30, 50 Intelligent Torque Drivers are premium non-slip grip drivers that work with the ATX Intelligent Torque Controller to calculate pressure and precision. The new CHP ATX Series Smart Servo Fastening System provides high-precision torque and angle-controlled fastening using a high-quality DC brushless servo motor, a high-precision transducer, and high-resolution digital encoder for accurate angle measurement.
FEATURES & Benefits
Note: Smart Controller and Connecting Cable Sold Separately
| Model | ATX-12 | ATX-30 | ATX-50 |
|---|---|---|---|
| Torque Range | 2.4 - 12 kgf-cm (2.08 - 10.41 lbf-in.) |
6.0 - 30 kgf-cm (5.20 - 26.03 lbf-in.) |
10 - 50 kgf-cm (8.67 - 43.39 lbf-in.) |
| Max Speed (RPM) | 2000 | 1200 | 700 |
| Torque Precision | < ±3% | ||
| Tool Bit Shank | 6.35 mm (0.25 in.) Hex | ||
| Tool Bits Included (50 mm Length) |
Phillips #1 - 3.0 mm ø Phillips #2 - 4.5 mm ø |
Phillips #2 - 4.5 mm ø Phillips #2 - 6.0 mm ø |
2pcs Phillips #2 - 6.0 mm ø |
| Grip Diameter | 34 mm (1.34 in.) | ||
| Trigger Type | User-Programmable Push/Lever/Both | ||
| Work Light | Integrated White LED - User-Programmable Intensity | ||
| Status Indicator | User-Programmable Yellow/Red/Green | ||
| Dimensions (W x D x H) | 41 x 40 x 272 mm (1.61 x 1.57 x 10.71 in.) |
||
| Weight | 480 g (16.9 oz.) | ||
| Operating Environment | 0 - 40°C (-32 – 104°F) 0 - 90% RH (Non-condensing) |
||
| Enclosure Rating | IP40 | ||
